MSI MAG A550BN Gaming Power Supply 80 Plus Bronze Certified

• MSI MAG A550BN Gaming Power Supply
• MSI 5 Year Limited Warranty

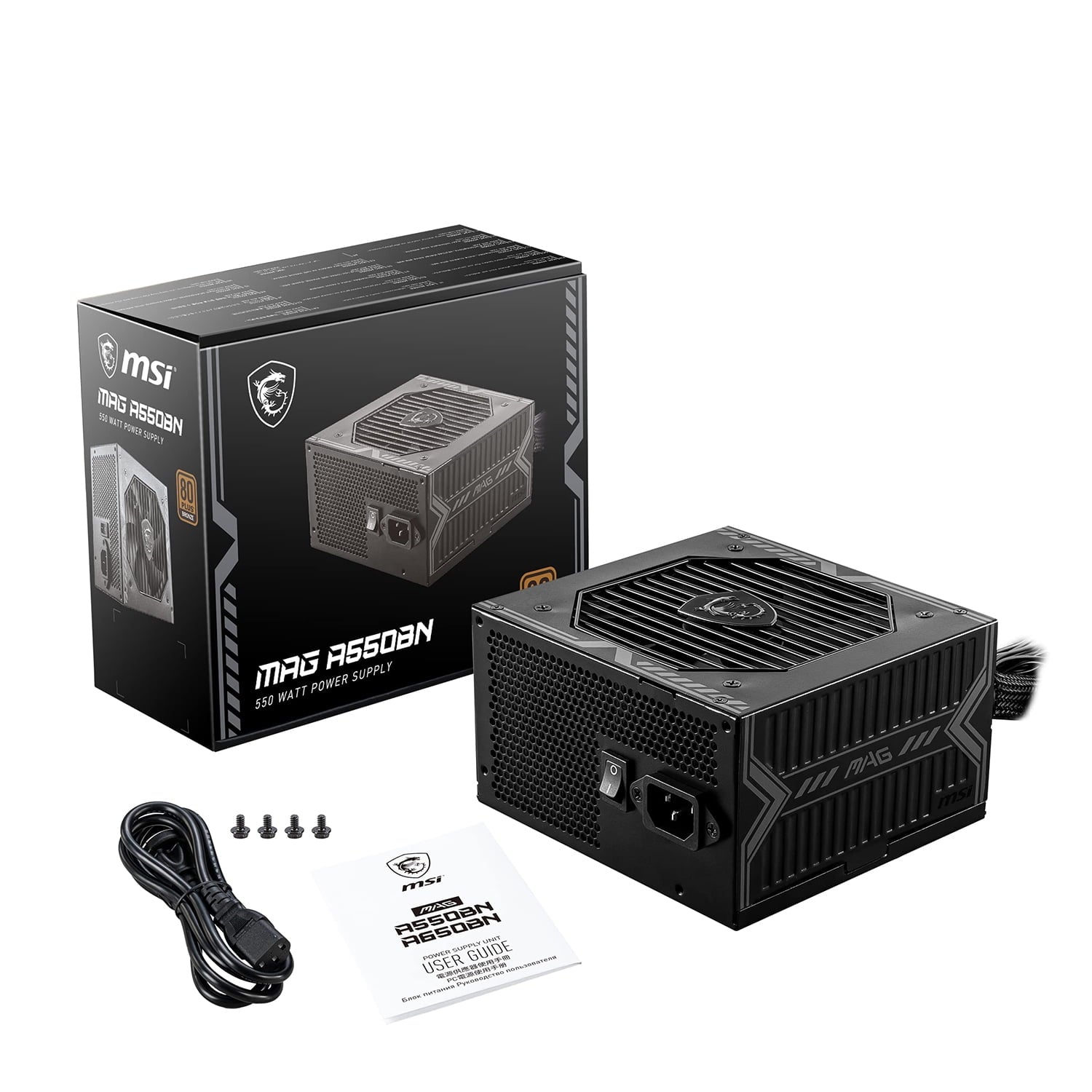

MSI MAG A550BN Gaming Power Supply

Product Highlights:

80 Plus Bronze certified for high efficiency

120mm Low Noise Fan

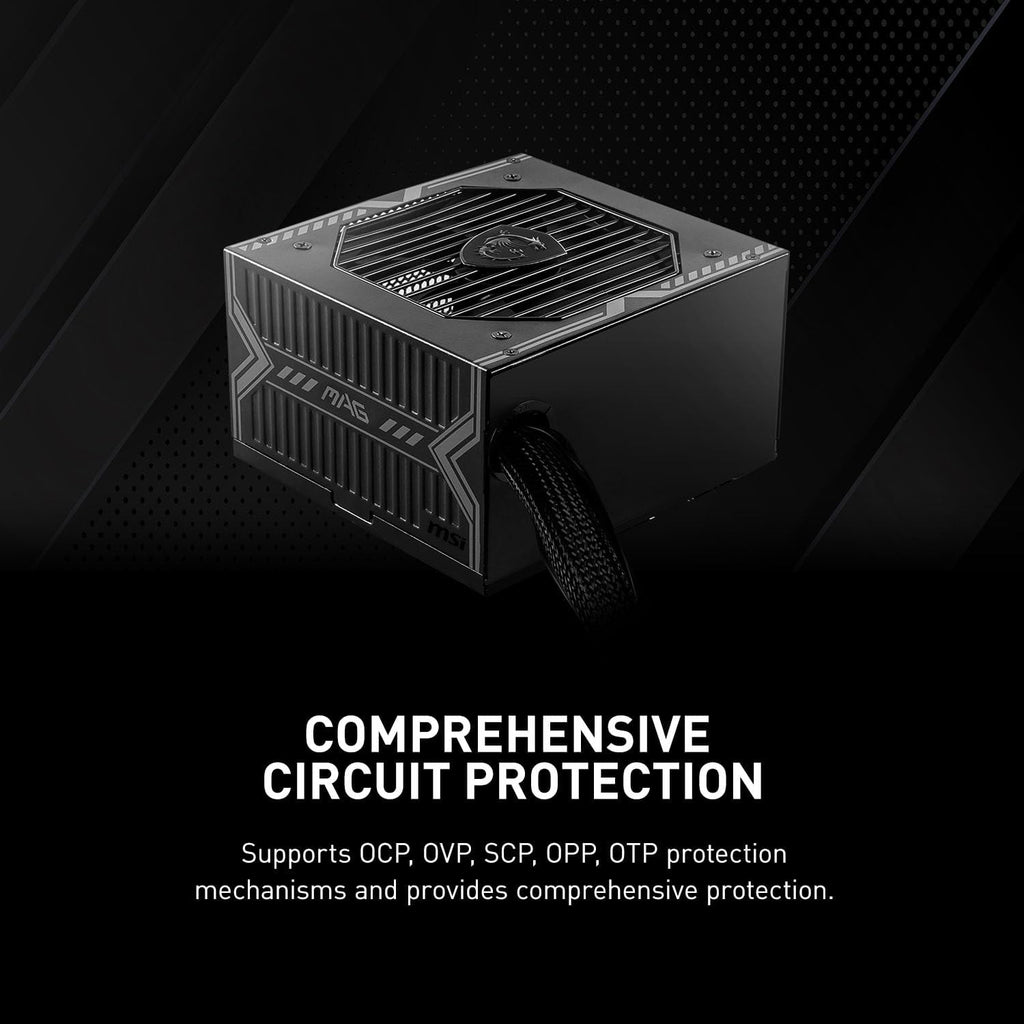

Industrial level protection with

OVP,OCP,OPP,OTP, SCP

DC-DC Circuit Design

Active PFC design

Product Feature:

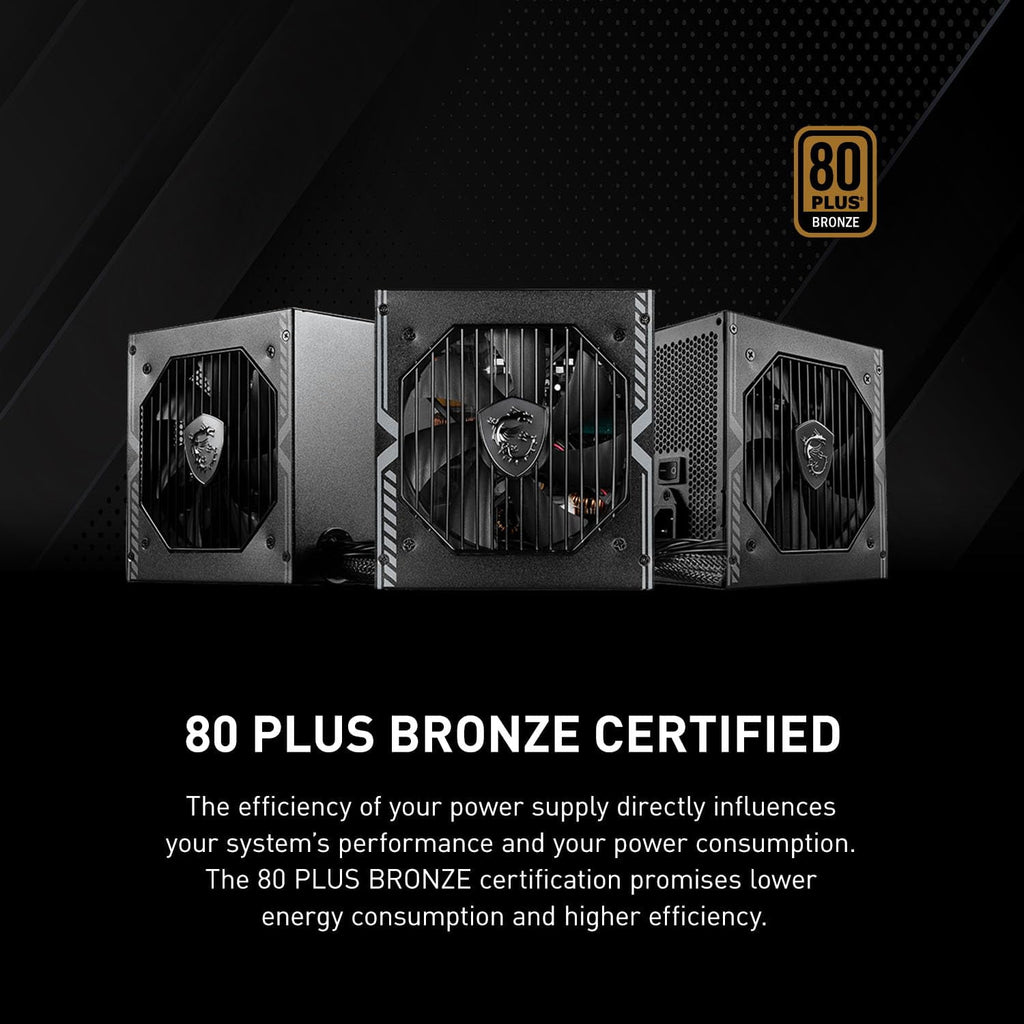

80 PLUS BRONZE CERTIFIED

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.

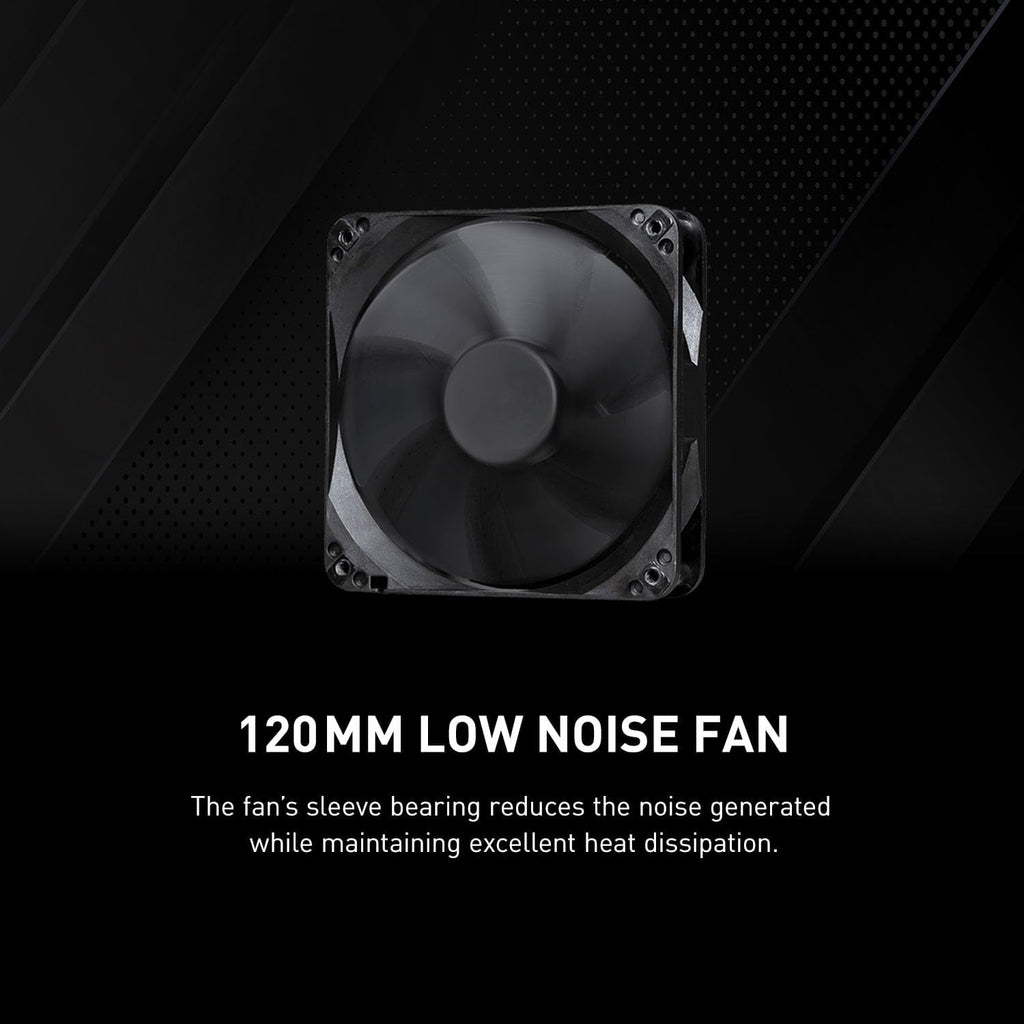

120mm LOW NOISE FAN

The fan’s sleeve bearing reduces the noise generated while maintaining excellent heat dissipation.

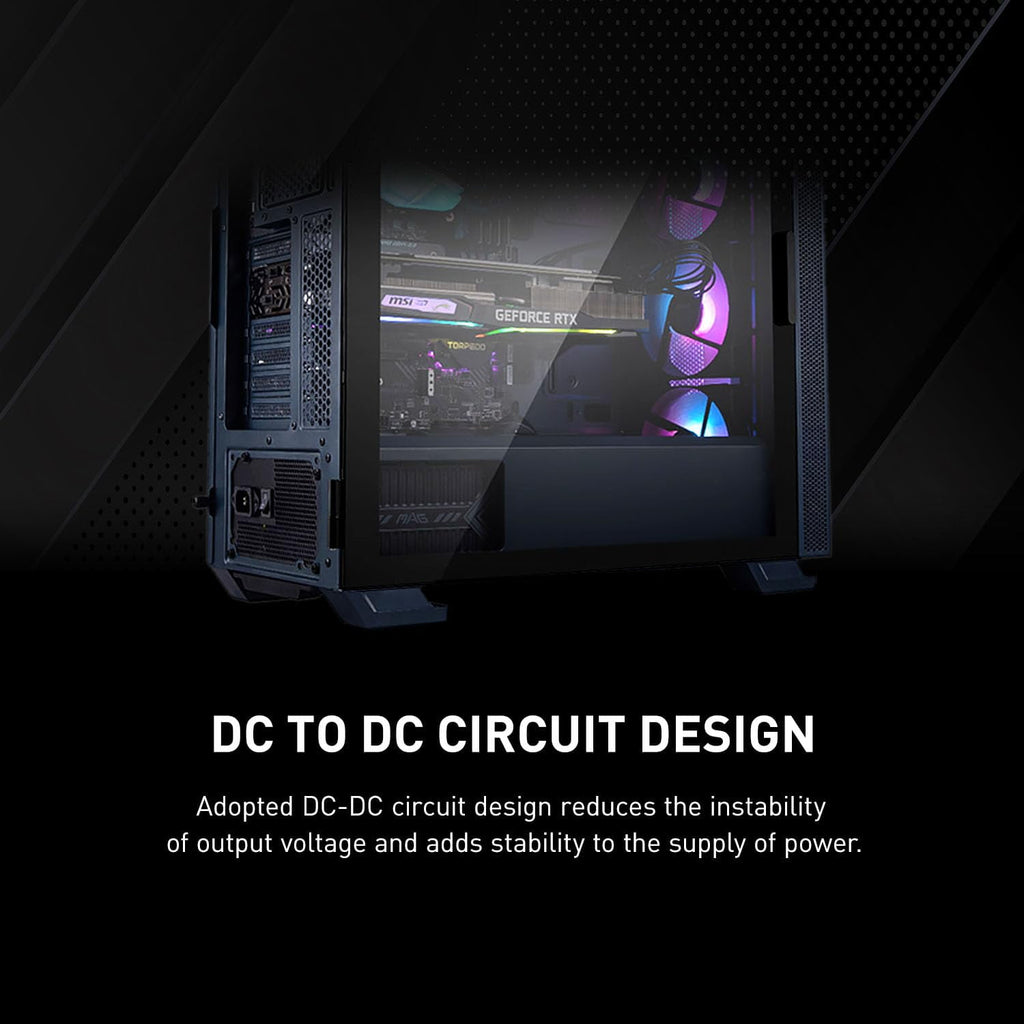

DC TO DC CIRCUIT DESIGN

Adopted DC-DC circuit design reduces the instability of output voltage, and ads stability to the supply of power.

5-YEAR LIMITED WARRANTY

The MAG A550BN is proudly backed by a 5-year limited warranty, guaranteeing long term reliable operation.

Product Specification:

Product Name MAG A550BN

Form Factor ATX

Rated Wattage 550W

Efficiency Rating 80 PLUS Bronze (up to 85%)

Modular No

Fan Size 120 mm

Fan Bearing Sleeve Bearing

Dimensions (DxWxH) 150 x 140 x 86 mm

PFC Type Active PFC

Input Voltage Range 100~240 VAC

Input Frequency Range 50~60 Hz

Protection OCP / OVP / OPP / OTP / SCP

ATX (24 pin) 1

EPS (8 pin) 1

PCI-E (6+2 pin) 2

SATA (15 pin) 5

MOLEX (4 pin) 2

FDD (4 pin) 1
