NOTE

This device is of the Zigbee version and cannot be directly connected to the 2.4G WiFi network.

It is not compatible with Zigbee Home Automation. Please use the Tuya or Smart Life app.

FAQ

Q: Why can't my device connect to 2.4G WiFi?
A: This is a ZigBee device, it can't connect WIFI signal directly. You need to require a Tuya ZigBee gateway as hub to work, please make sure you have a Tuya ZigBee gateway to work with this item.

Q: Is it ZigBee 3.0 standard Item?
A: No. It's Tuya ZigBee device, not ZigBee 3.0. so it can only work Tuya ZigBee Gateway.

Q: Is this device compatible with Zigbee2MQTT?
A: Sure. But you need to know how to set it up. Internal id: _TZE284_81yrt3lo. You may need to install a quirk: 'github.com/jeverley/zha-device-handlers/blob/ts0601_energy_meter_devices/zhaquirks/tuya/ts0601_energy_meter.py'

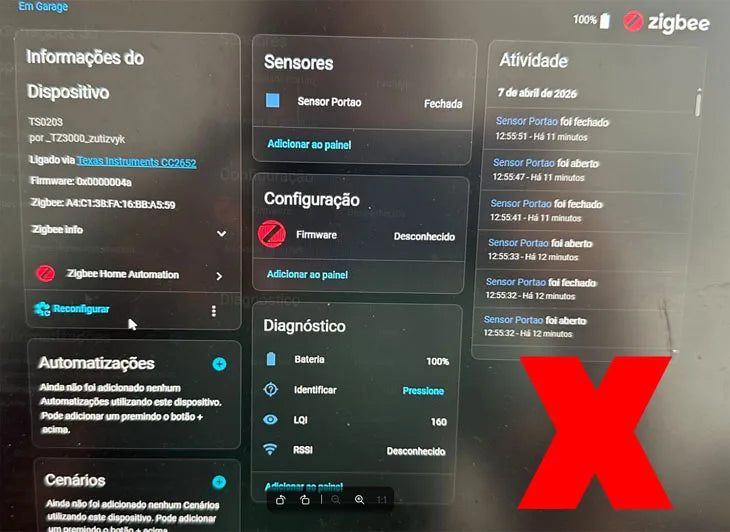

Q: Is this device compatible with Home Assistant?
A: No, it's not compatible. You need configure it with ZigBee2MQTT first, then it can work with Home Assistant. If you don't know how to configure it, please use the Tuya Smart or Smart Life APP.

Q: Does the equipment have an overload alarm function?
A: Sorry, it doesn't have this function.

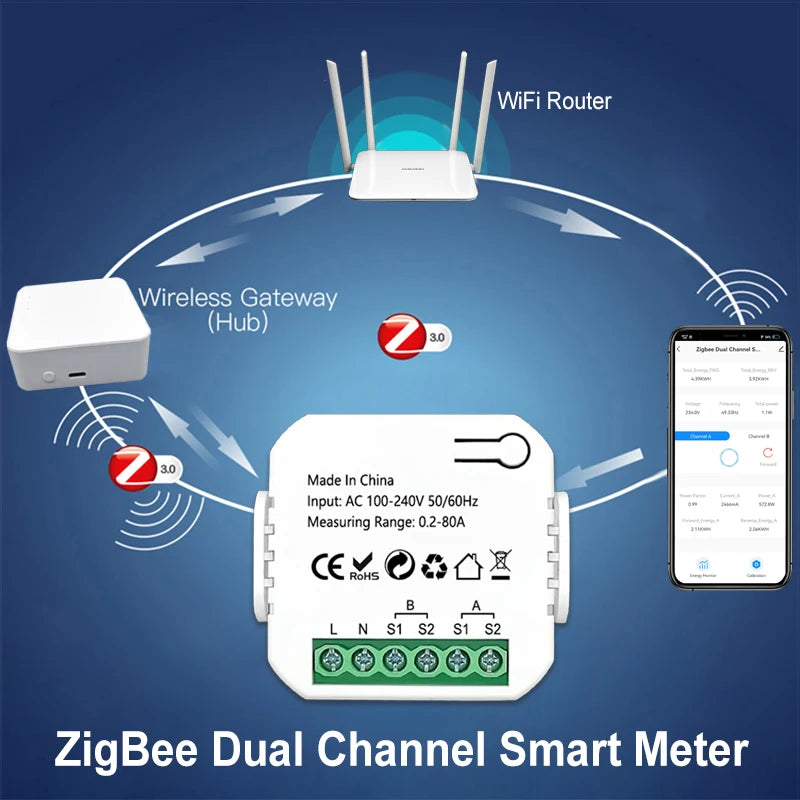

A Tuya Gateway is Required

Please Note this device requires a Tuya ZigBee Gateway to work. Because it can not receive 2.4G wifi signals directly.

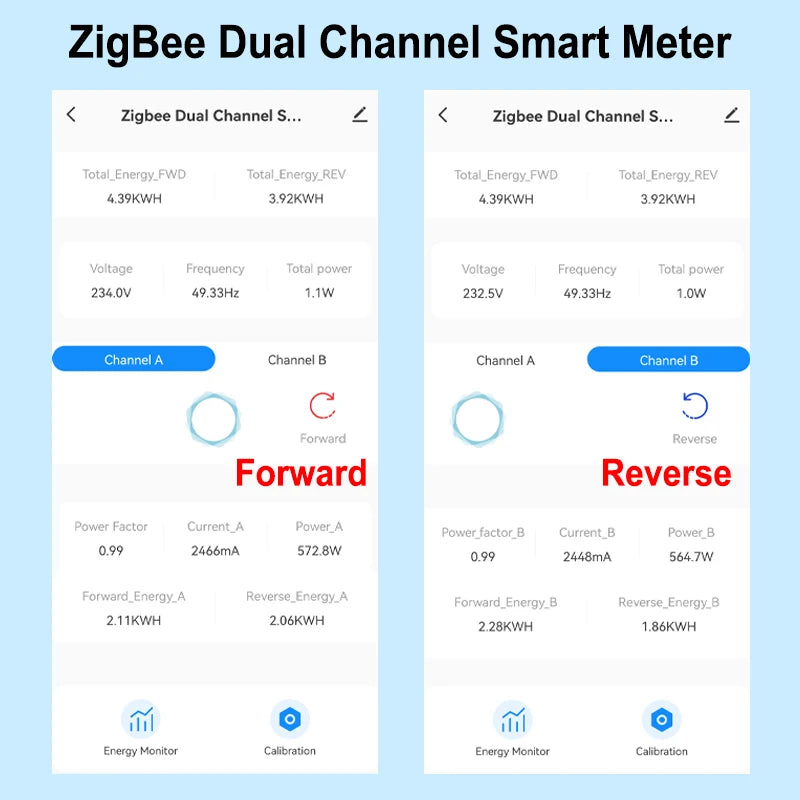

App can display Channel A and B Real-time power, current, voltage for Forward and Reverse direction clrealy

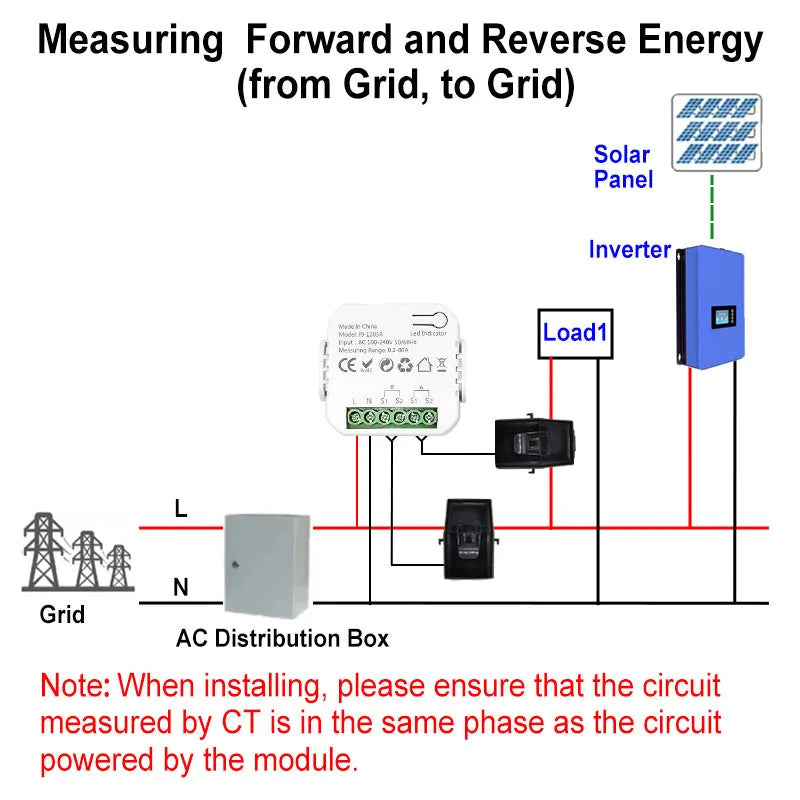

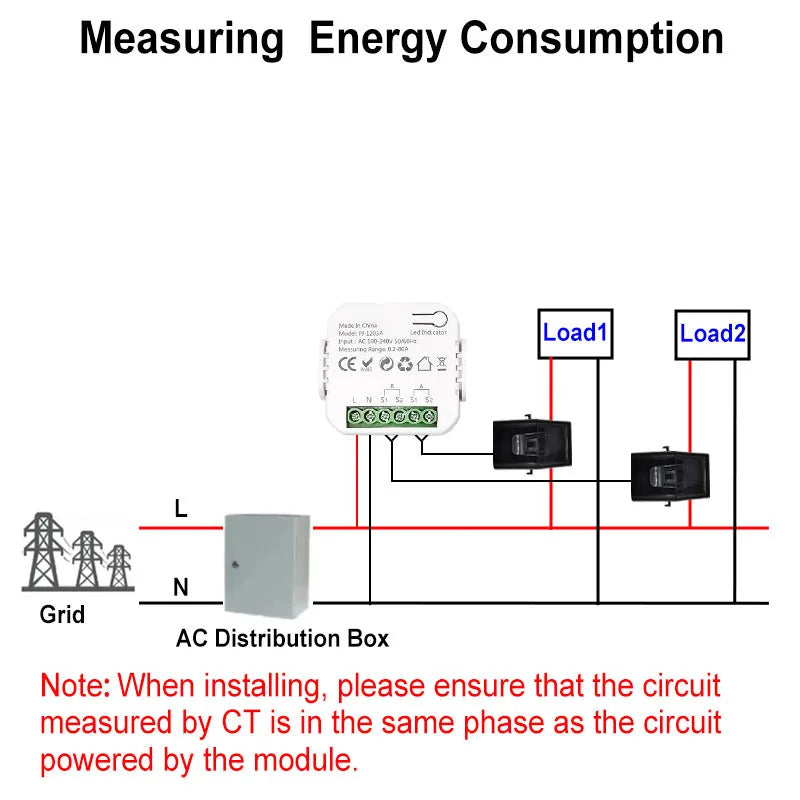

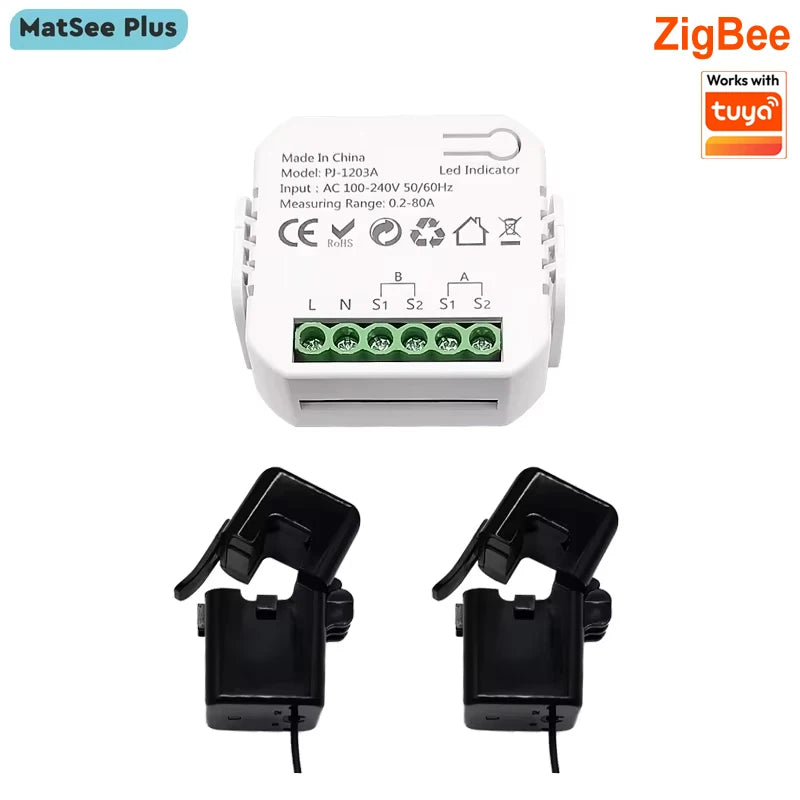

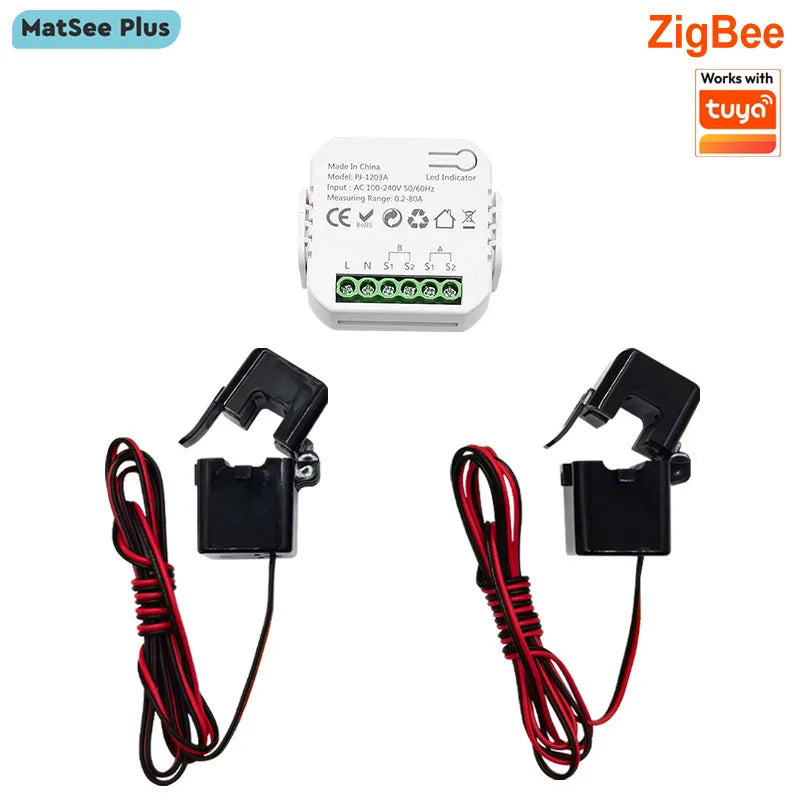

2 Channels For Reverse and Forward direction

1 Channle or 2 Channels are available to Choose

And you can read from App for each Channel

- Real-time total power of 2 channels of reverse and forward direction

- Power for Channel A and B Separately(W)

- Current(mA)

- Voltage(V),

- Power factor, and Frequency(Hz)

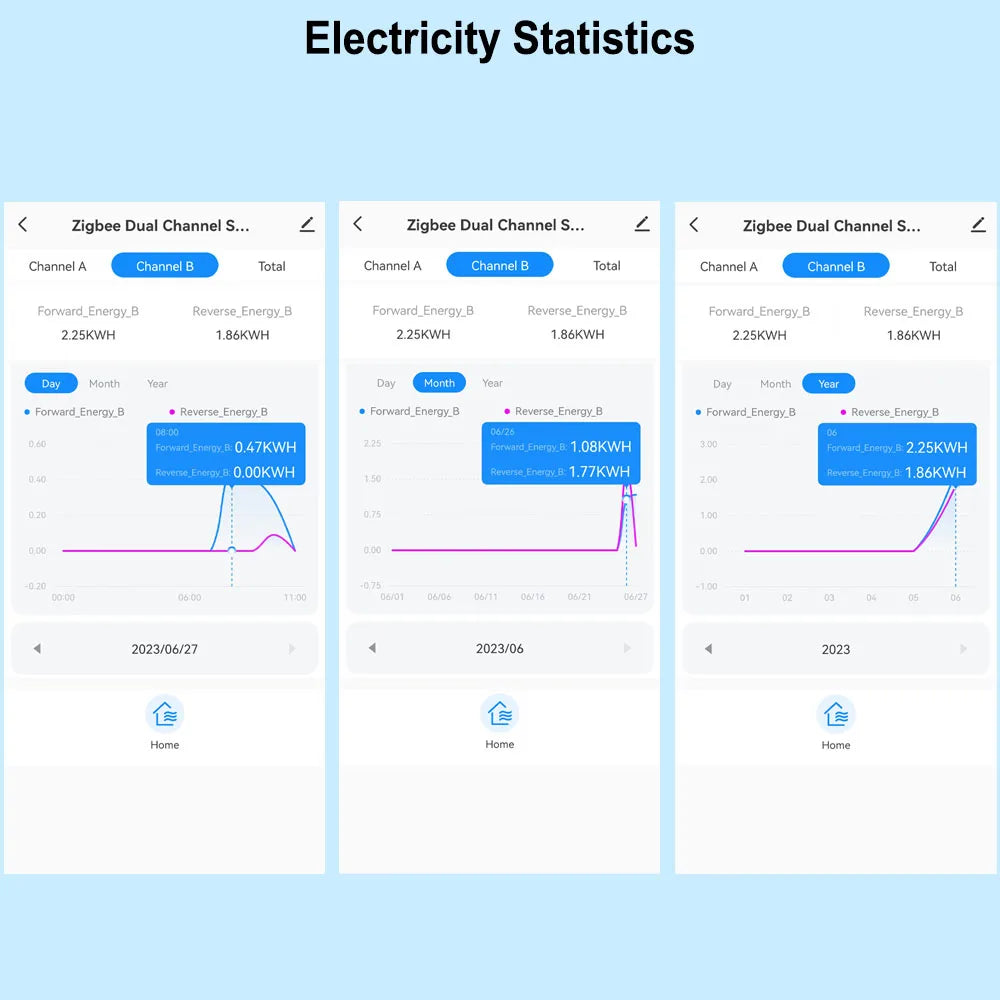

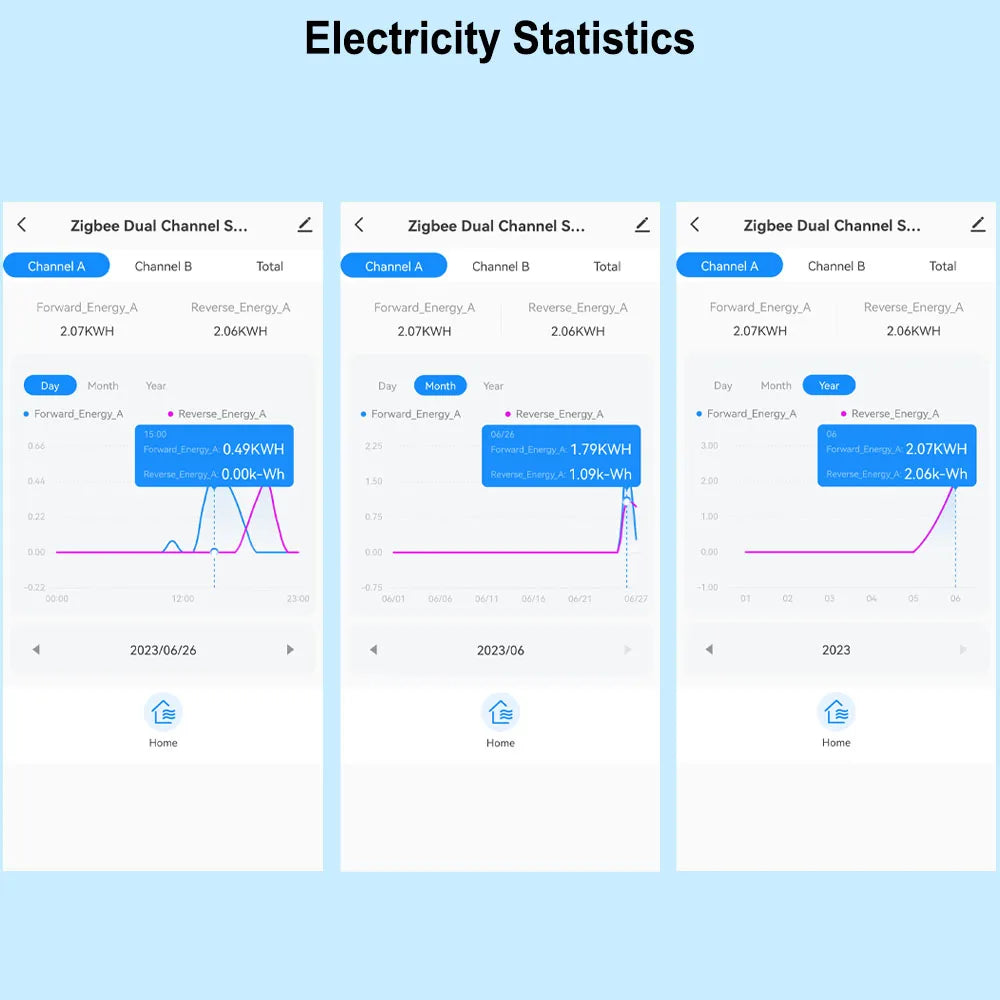

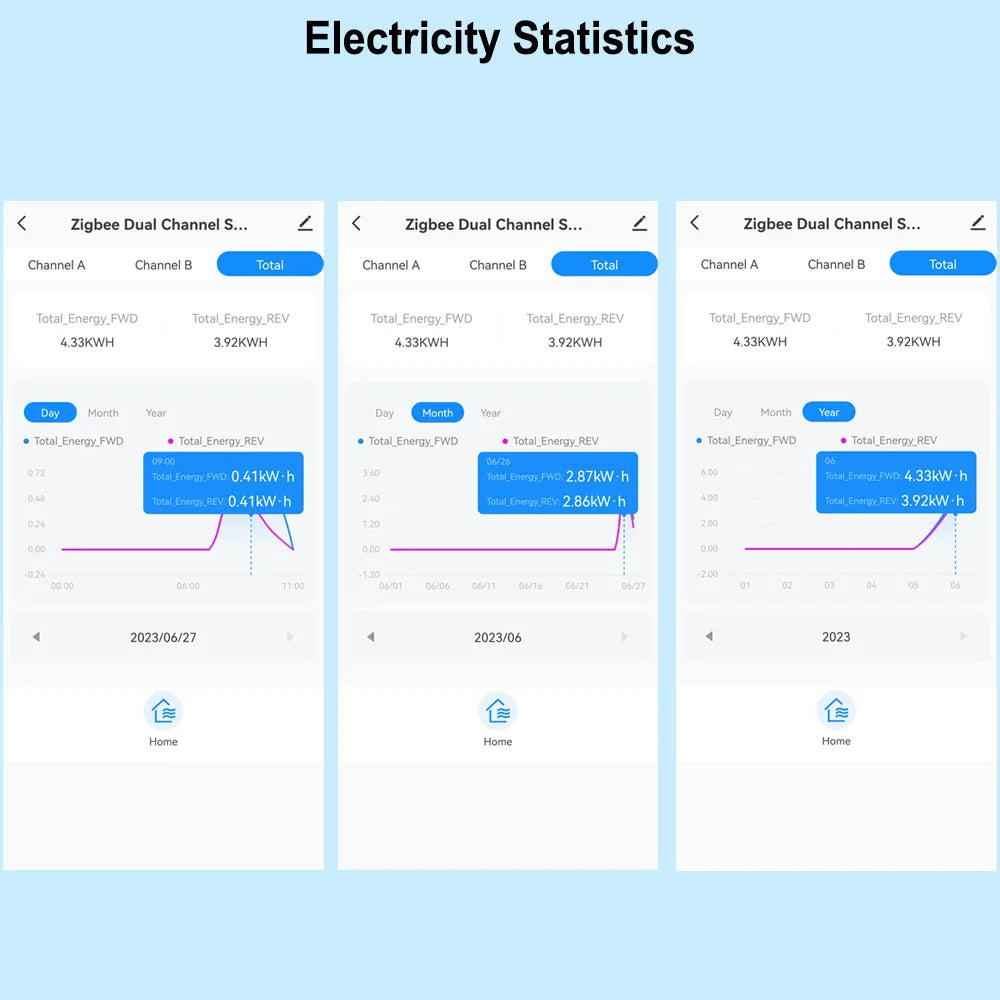

Electricity Statistic for each channel in Forward and Reverse direction.

Hourly Elec. (KWh)

Daily Elec. (KWh),

Monthly Elec. (KWh)

-Yearly Elec. (KWh)

Technical data:

Rated Voltage:100-240V AC 50/60Hz

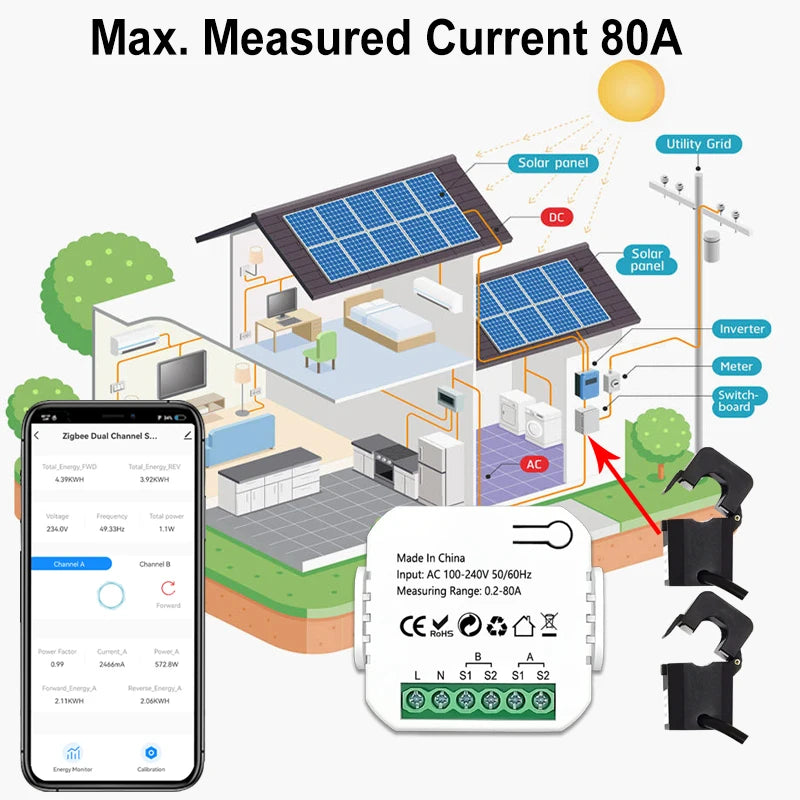

Measurable Current Range: 0.2A-80A

Wireless Protocol: ZigBee

Ambient Temperature Range:-10°C ~ 55°C

Electricity Statistic Channel A , B Separately and Total daily monthly, yearly Reverse and Forward Direction

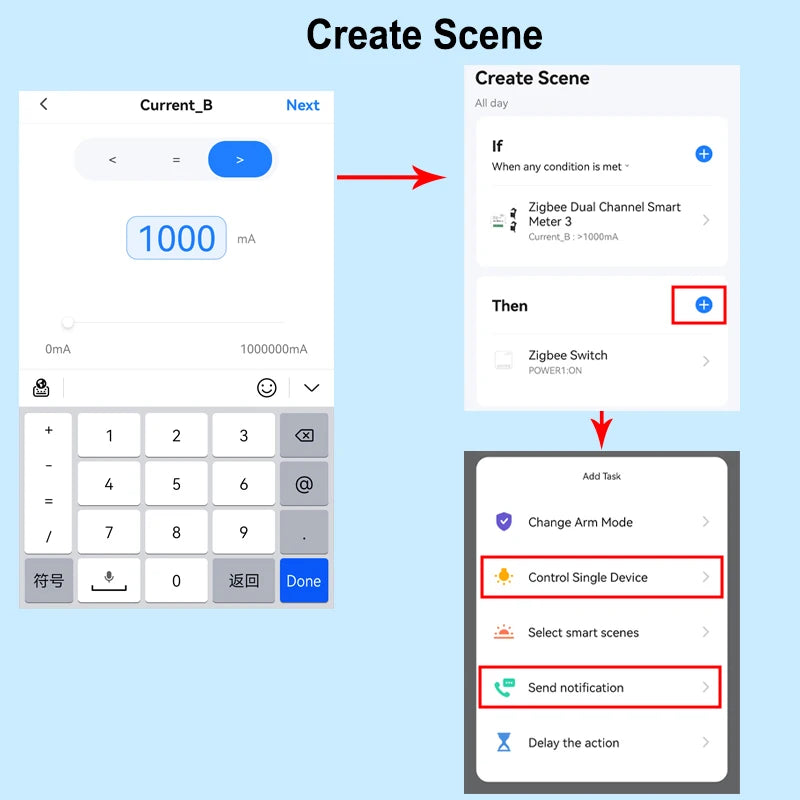

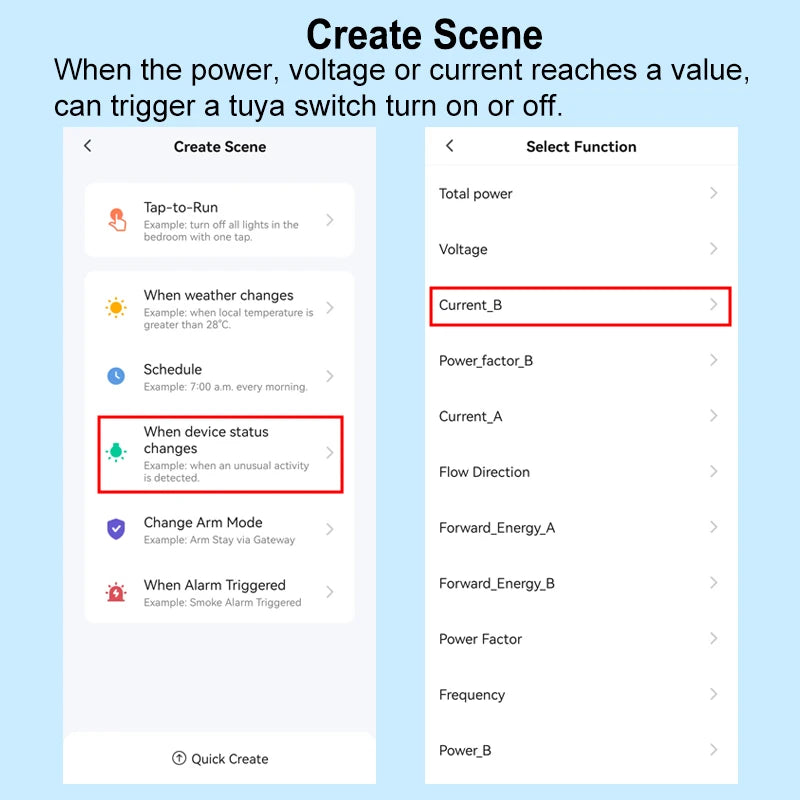

Automation , It allows to make a Scene for this device working with other tuya devices

For example, If Power or Current Is over the Value, then other tuya device starts to work .

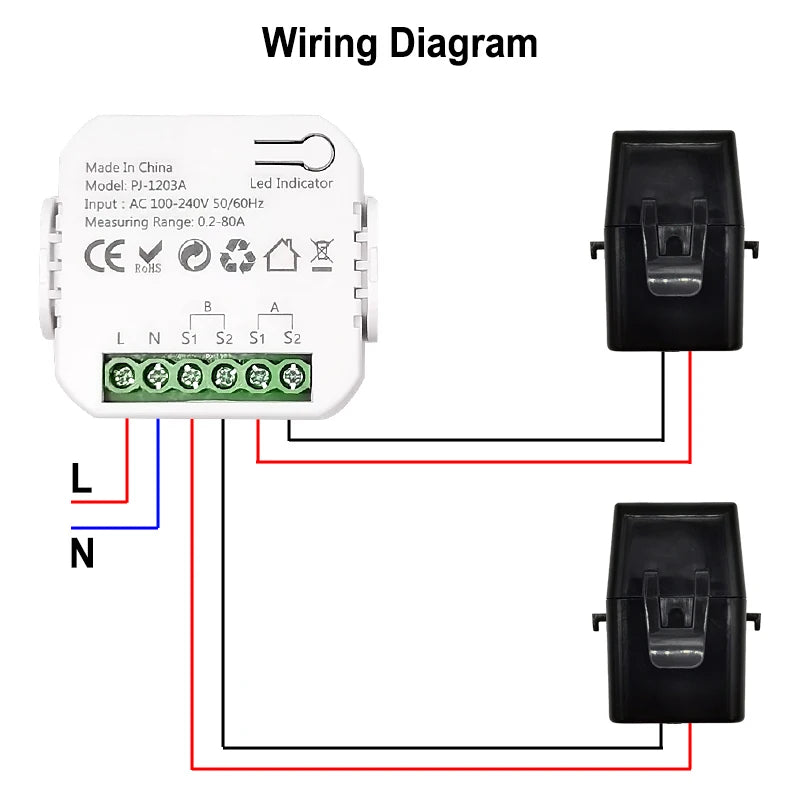

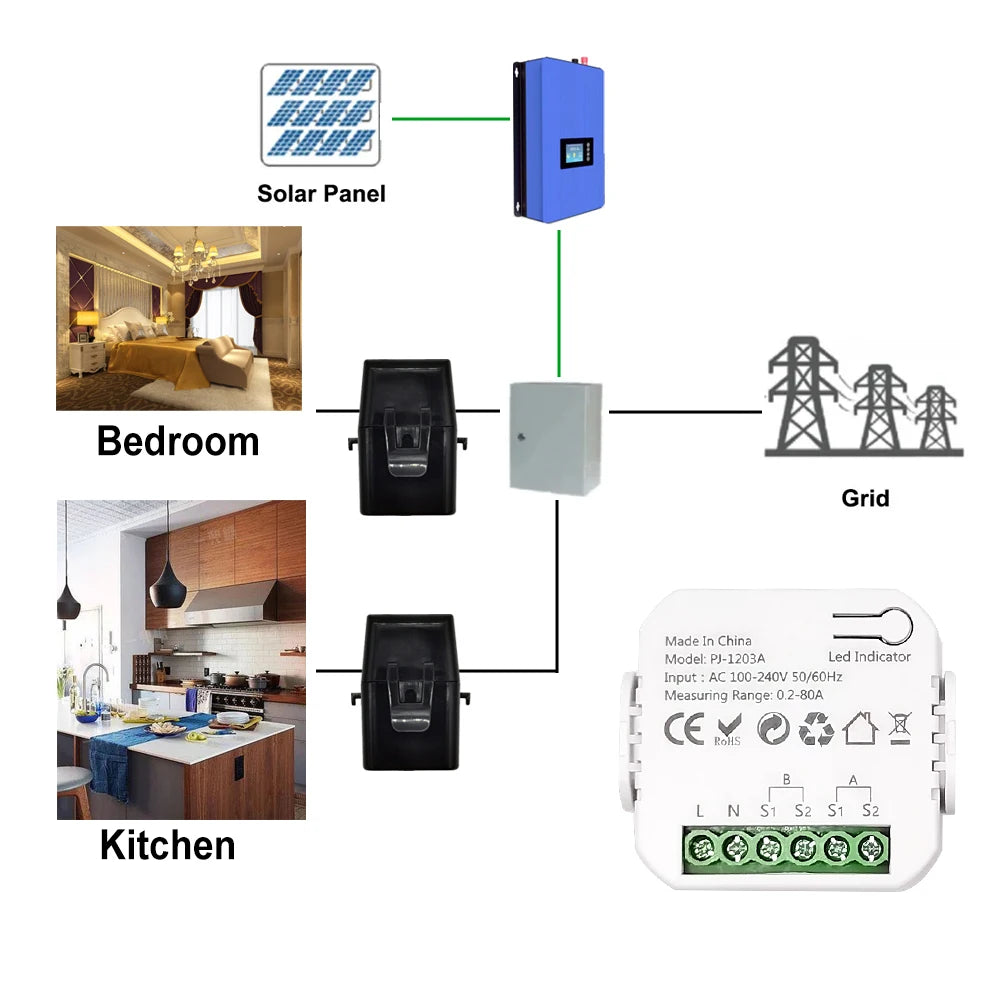

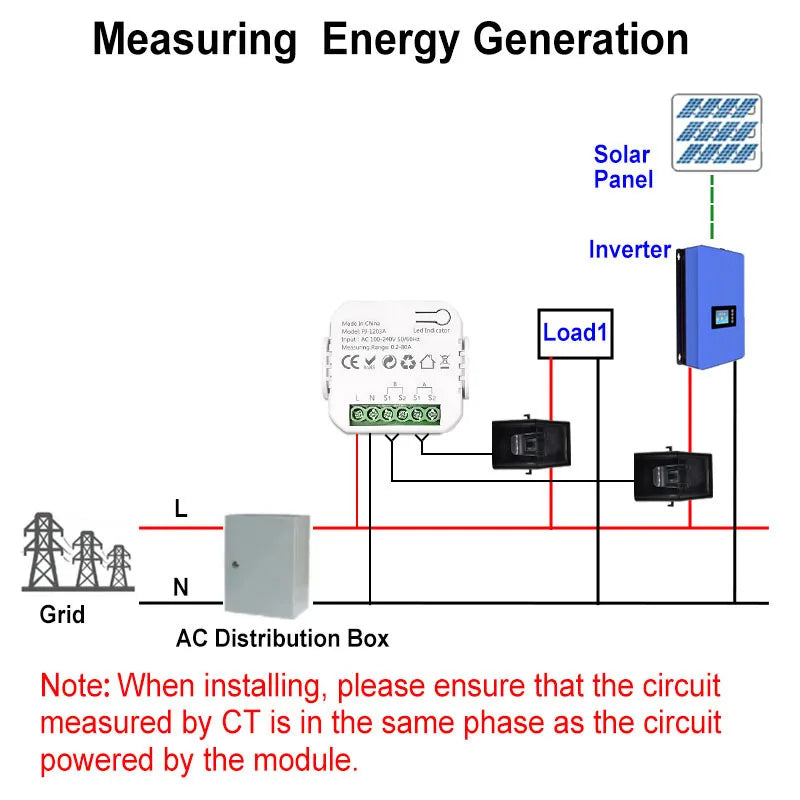

Wiring Diagram
