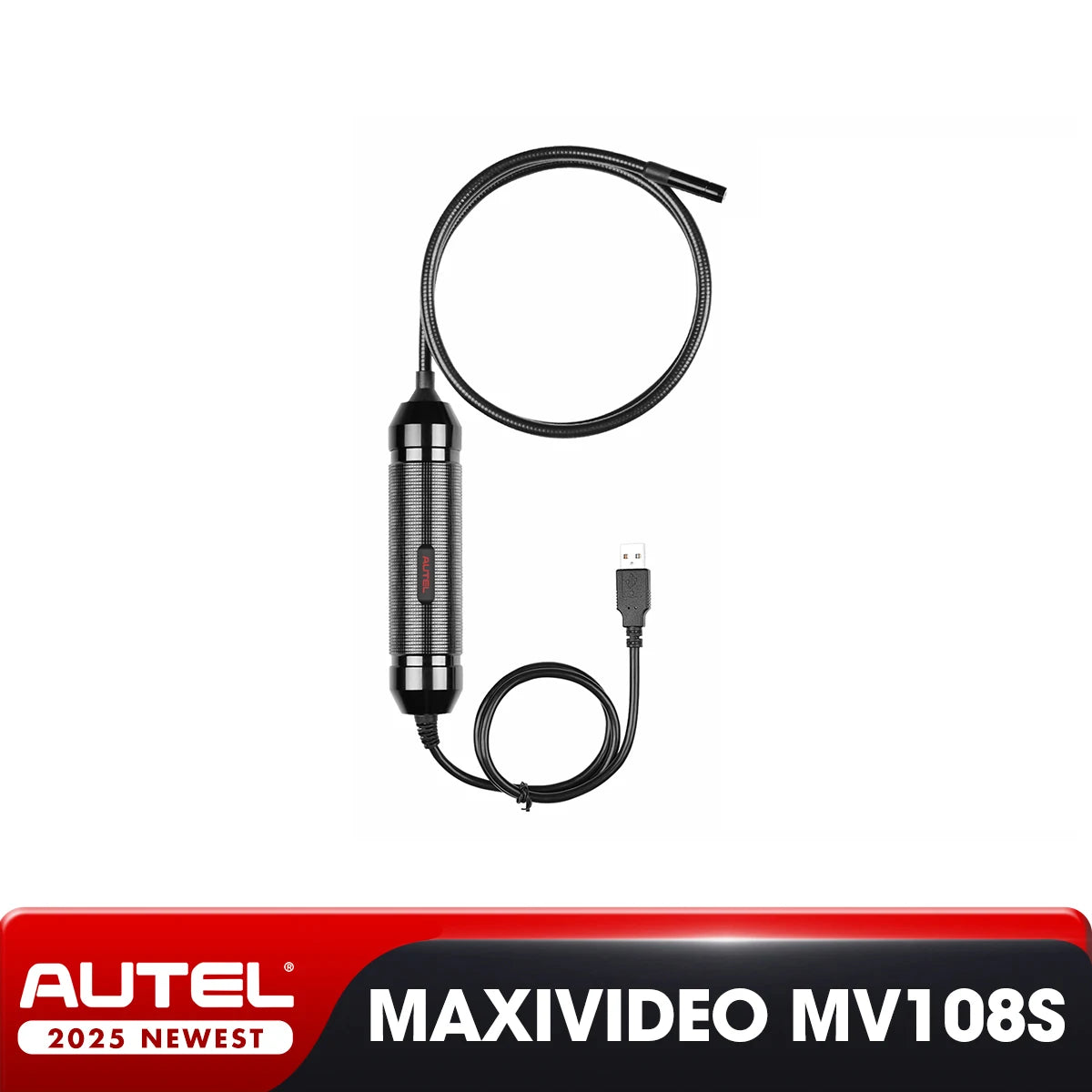

Autel MaxiVideo MV108S

The MV108S digital inspection camera is designed to work with MaxiSys series products or PC. It turns your MaxiSys tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.

Work with:

MS906BT/MK906BT/MS906CVMS906TS//MS919/MS909/MS908/MS908S PRO/MS908S/MK908/MK908P or PC

Feature:

White LED lights to illuminate the inspection areas
Small 8.5 mm diameter head allows it to be used in the tight spaces
Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections
Powerful and perfect for inspecting most spark plug holes
Super bright LED and high resolution provide crystal clear imagesFeature::
White LED lights to illuminate the inspection areas
Small 8.5 mm diameter head allows it to be used in the tight spaces
Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections
Powerful and perfect for inspecting most spark plug holes
Super bright LED and high resolution provide crystal clear images

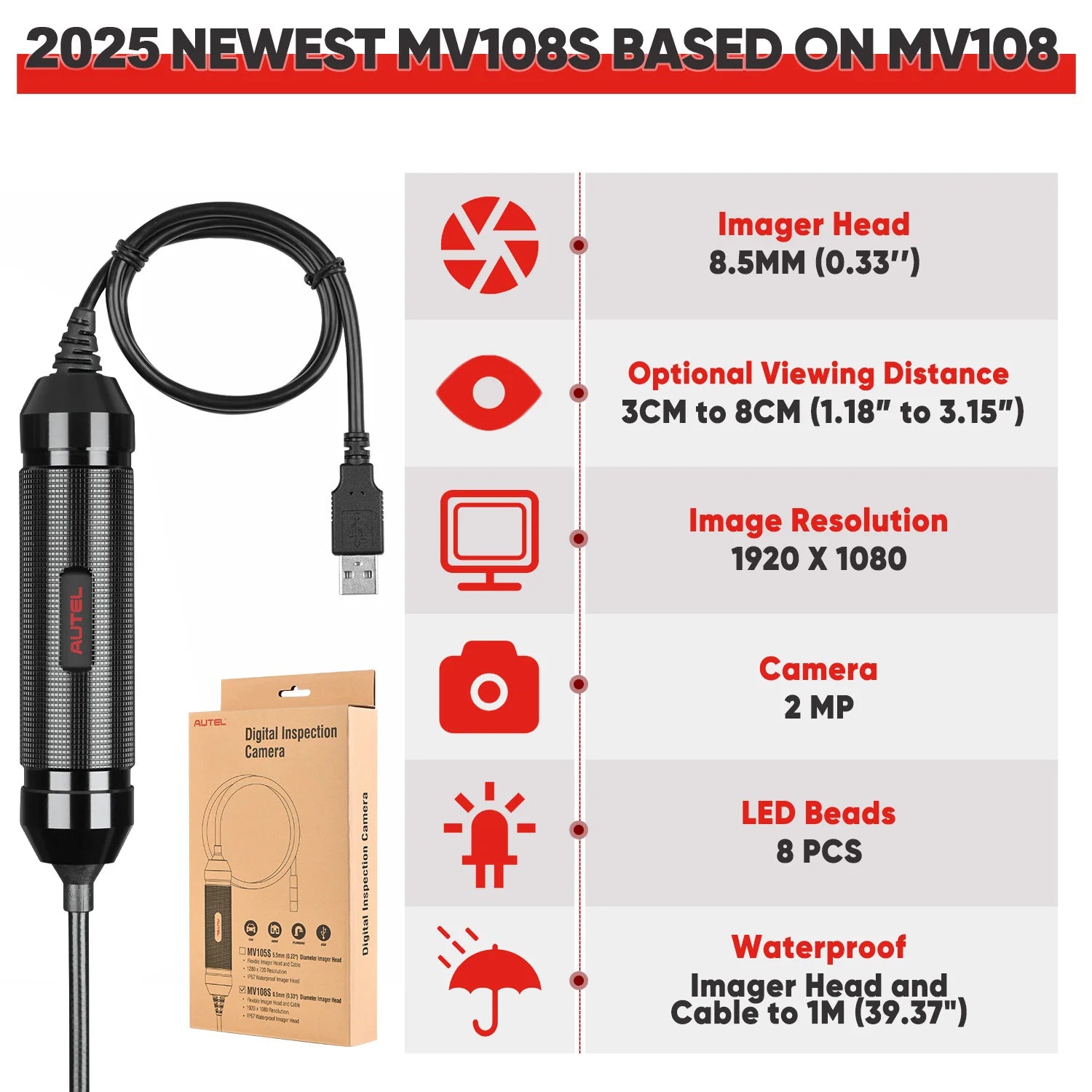

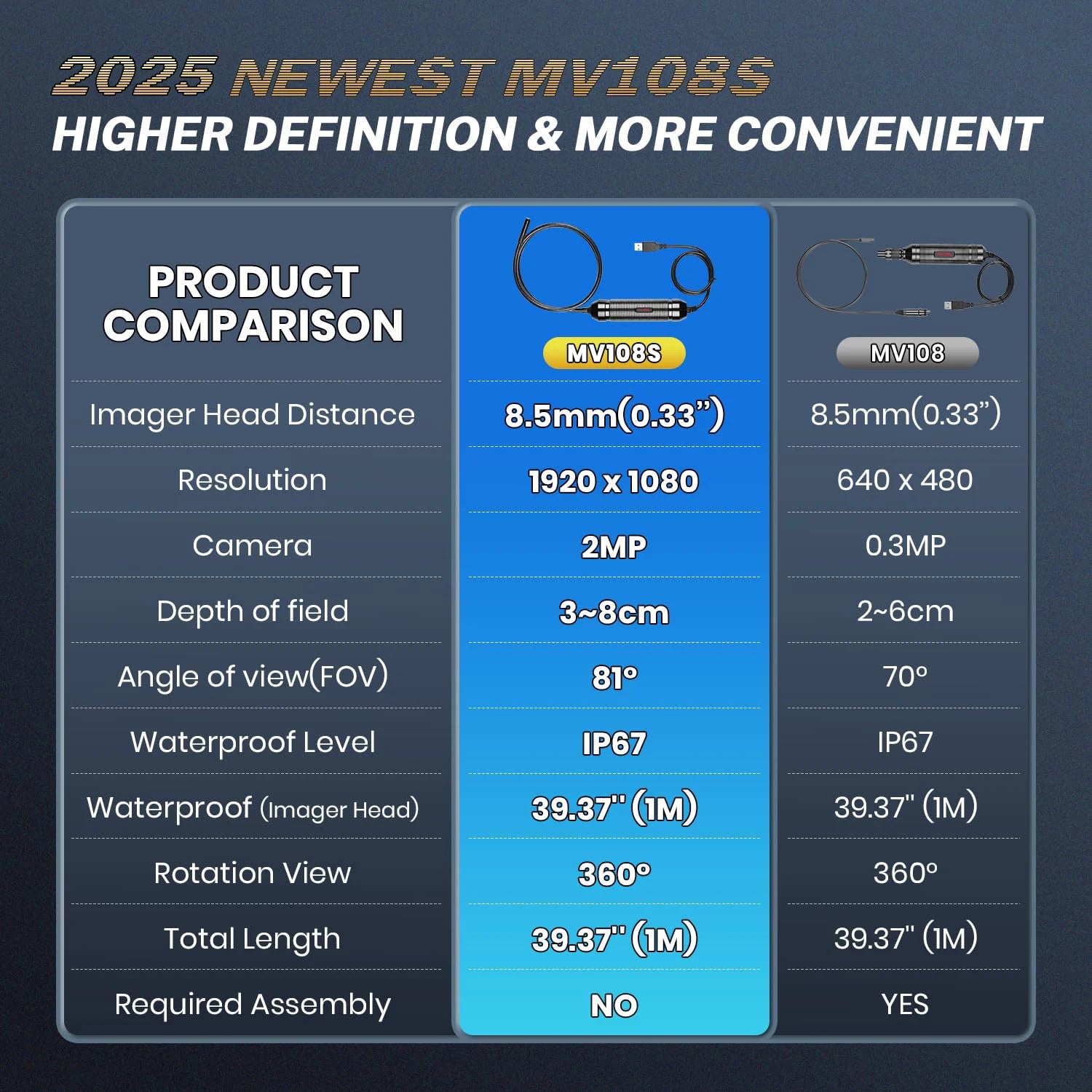

SPECIFICATIONS：

Imager Head Distance：MV108S: 8.5 mm
Camera：MV108S: 2 MP, MV108S: 1920 x 1080
Depth of Field：MV108S: 3cm to 8cm (1.18” to 3.15”)
LED Beads：8 pcs
Imager Head Cable Length：1 m (39.37")
Waterproof Level (Imager Head)：IP67
Operating Temp.：-10 °C to 70 °C (14 °F to 158 °F )
Storage Temp.：-10 °C to 70 °C (14 °F to 158 °F )

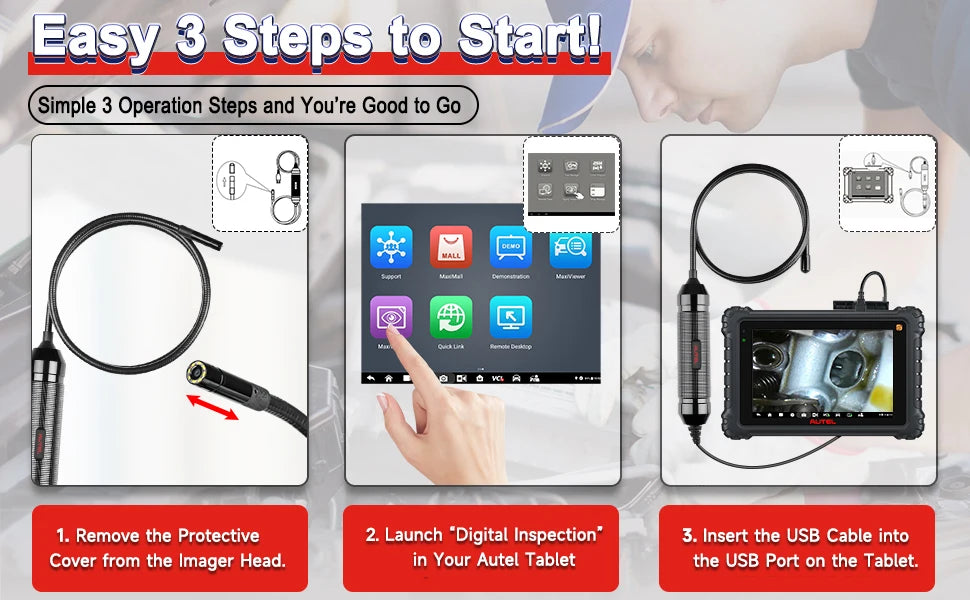

IT ONLY TAKES 3 STEPS TO START!

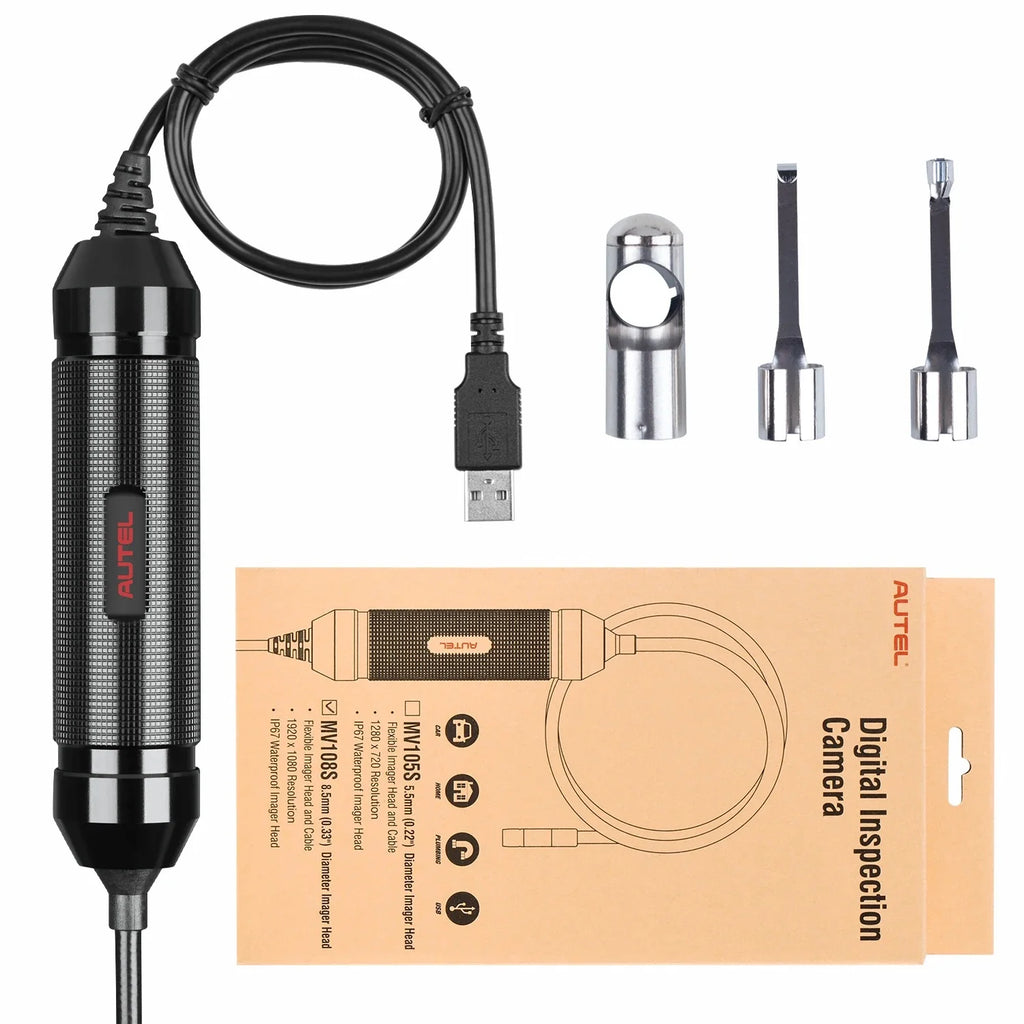

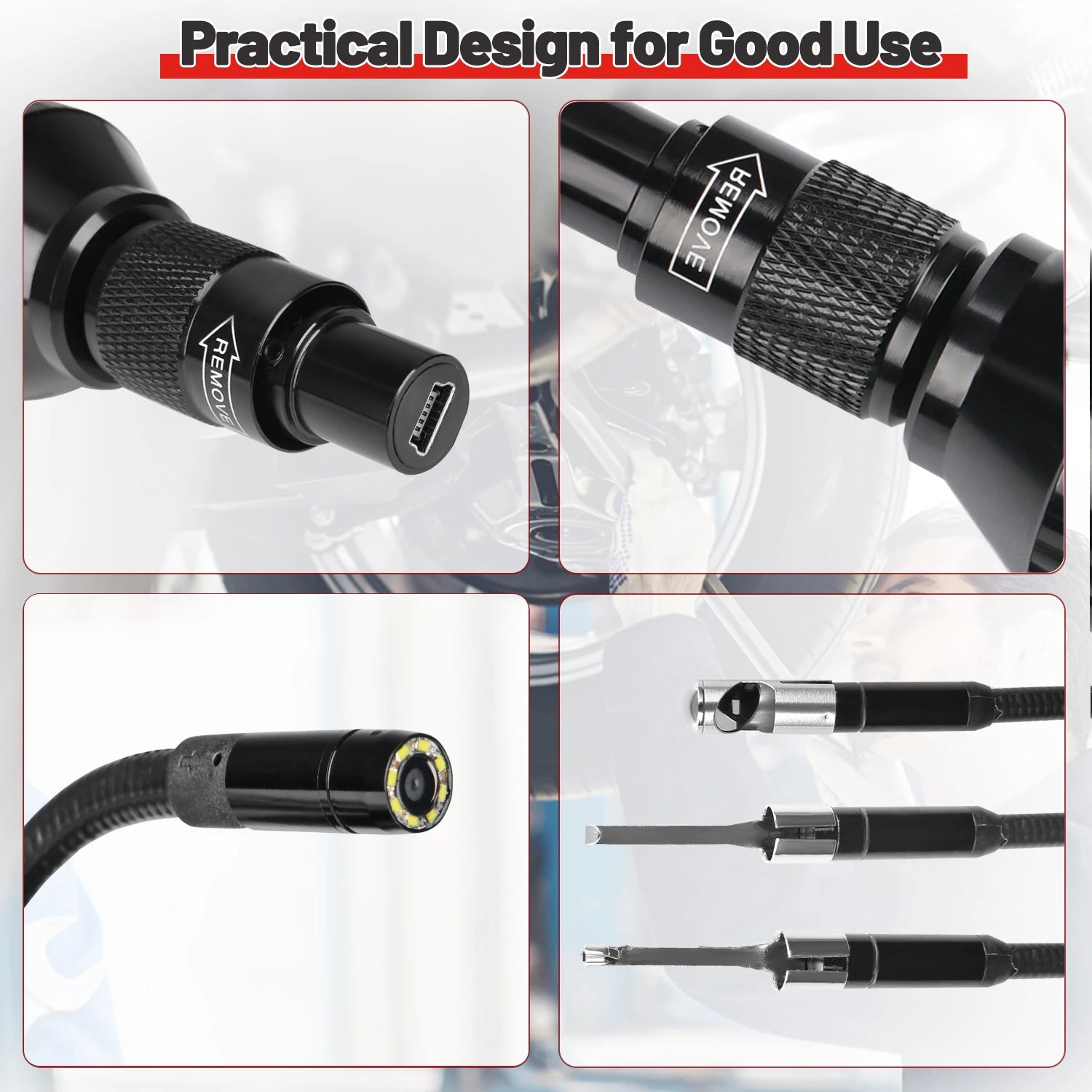

1.Connect the Removable Imager Head Cable to the Handgrip. Make sure the key and slot are properly aligned. Once they are aligned, finger-tighten the knurled knob to hold the connection firmly in place.
2.Power up the MaxiSys Tablet, and select the ''Digital Inspection'' application on the Job Menu.
3.Connect the MaxiVideo inspection camera to the MaxiSys Tablet with the USB connection, and that's it!
